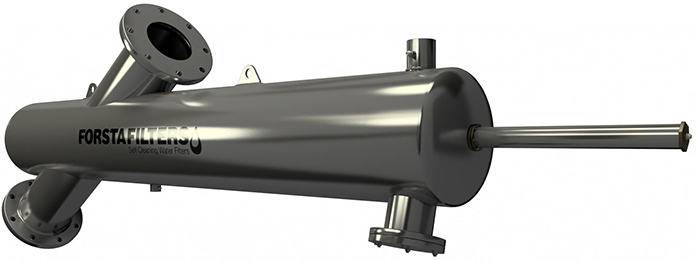

The Zero Series offers a unique configuration of automatic self-cleaning water filters.
Zero Series automatic water filters have a straight flange configuration to accommodate simple installation. The Zero Series filter will integrate with any straight pipeline.
Zero Series irrigation and industrial water filters are distinguished by a two-stage screening process. Each water filtration contains a coarse screen and a fine screen. The coarse screen is responsible for straining out large debris from a water source. The fine screen purifies water to its designated quality.
These automatic water filters provide solutions in a wide variety of applications.
Custom Engineered
Call us today at 310-837-7177 or request a quote and we’ll be in touch with you right away to help you find the best filter for your industrial application.
Filter Specifications
| Flow Rate | 15 - 7,350 gpm |
|---|---|
| Flush Cycle Duration | 6 - 20 seconds |
| Flush Valve Size | Single 1" or single 2" |
| Screen Opening | 5µ - 4,000µ |
| Temperature | 210ºF |
| Flush Volume | 4 - 50 gallons per backwash |
| Working Pressure | 35 - 150 psi |
| Material | Stainless Steel, Carbon Steel, or Duplex Stainless |
Data Sheets
| Filter Model | Screen Area (sq ft) |
Max Flow Rate (gpm) |
Connection Size (in) |
Data Sheet (dwg/pdf) |
|
| A2-0 | 2.65 | 200 | 2 | dwg | |
| A3-0 | 2.65 | 300 | 3 | dwg | |
| A4-0 | 2.65 | 500 | 4 | dwg | |
| B4-0 | 5.25 | 500 | 4 | dwg | |
| B6-0 | 5.25 | 1000 | 6 | dwg | |
| B8-0 | 5.25 | 1400 | 8 | dwg | |
| C4-0 | 7 | 500 | 4 | dwg | |
| C6-0 | 7 | 1000 | 6 | dwg | |
| C8-0 | 7 | 1700 | 8 | dwg | |
| D4-0 | 9.25 | 500 | 4 | dwg | |
| D6-0 | 9.25 | 1000 | 6 | dwg | |
| D8-0 | 9.25 | 2000 | 8 | dwg | |
| E10-0 | 12.25 | 2700 | 10 | dwg | |
| F12-0 | 15.25 | 3800 | 12 | dwg | |
| F14-0 | 15.25 | 3800 | 14 | dwg | |
| G14-0 | 18 | 4500 | 14 | dwg | |
| G16-0 | 18 | 4500 | 16 | dwg | |
| H16-0 | 24.5 | 6125 | 16 | dwg | |
| H18-0 | 24.5 | 6125 | 18 | dwg | |
| H20-0 | 24.5 | 7350 | 20 | dwg | |
