Coarse filters have a straight flange design which allows for direct installation into an existing pipeline.
All Details at a Glance

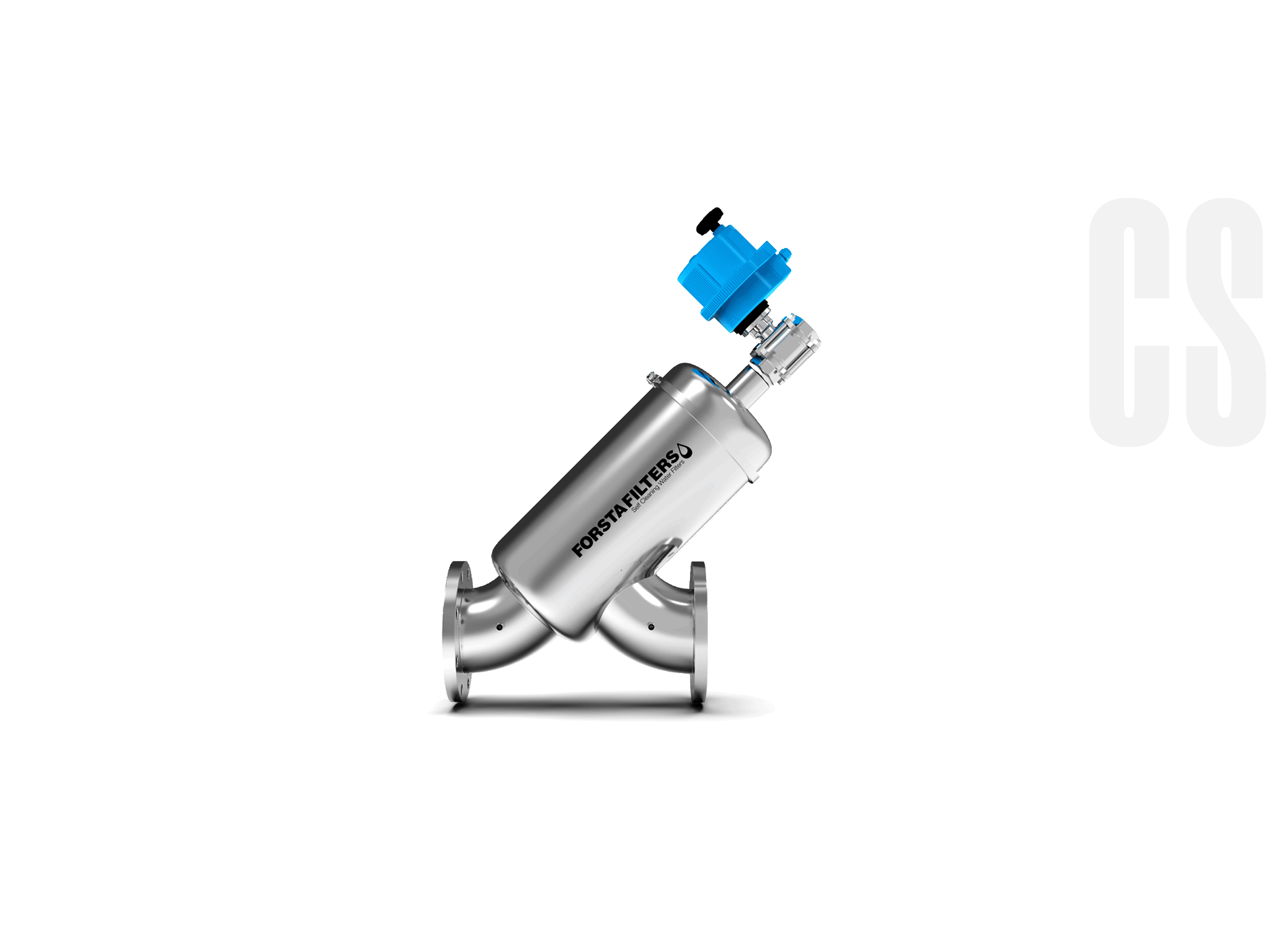

A Coarse Strainer industrial water filter is an in-line configuration of an automatic self-cleaning water filter.
Coarse Strainer automatic filters have an inline flange design which allows for direct installation into an existing pipeline.
This first-stage automatic water filter is designed to eliminate large debris from source water. A Coarse Strainer industrial water filter is often used in combination with other Forsta filter models to provide complete equipment protection.
|Strainer Max Flow Rate||10,000 gpm||2,271 m³/h|
|Operating Pressure||40 - 150 psi *||2.5 - 10 bar *|
|Max Temperature||150º F *||65º C *|
|Screen Opening||500µ - 6,000µ|
|Flush Valve Size||Single 1", 2", 3", or 4"||25mm, 50mm, 75mm, or 100mm|
|Flush Duration||6 - 16 seconds|
|Flush Volume||4 - 347 gallons||15 - 1,310 liters|
|Material of Construction||304/316L Stainless or Superduplex|
