The Importance of Screen Size in Automatic Self-Cleaning Water Filters: A Guide to Optimal Particle Removal

Automatic self-cleaning water filters are an essential part of water treatment systems across industries, including cooling water systems, drinking water processing, and food and beverage production. A key consideration in these systems is selecting the appropriate screen size, measured in microns, to match the water source and operational requirements. This article explores the significance of the 100–500 micron particle size range, how high-quality screens are fabricated, and real-world applications, such as in a high-volume bakery.

Understanding Micron Screen Sizes and Their Impact

The micron rating of a filter screen determines the size of particles it can remove. Particles in the 100–500 micron range, such as fine sand, silt, organic debris, and certain biological contaminants, are particularly problematic for cooling water systems and other industrial processes.



Particles in the 100–500-micron range present a diverse array of characteristics that pose challenges for filtration systems. These particles can vary significantly in shape, from angular and irregular (e.g., sand and silt) to rounded and smooth (e.g., pollen or organic debris). Their chemical composition often includes mineral-based hard particles, such as silica and calcium carbonate, as well as softer organic matter like plant fibers and biofilm fragments. The hardness or softness of these particles impacts their abrasiveness and their tendency to deform under pressure, influencing their interaction with filter screens.

Forsta’s mesh screens are engineered with a multi-layer diffusion-bonded construction, precisely maintaining pore geometry to act as a mechanical barrier that effectively captures particles larger than the rated size. The screen’s smooth surface and uniform aperture design minimize the chances of particle embedding, which optimizes filtration efficiency and facilitates easy removal of debris during the suction cleaning cycle. This geometry ensures a balance between strong particle retention and low resistance to the cleaning process, enabling high filtration performance and extended screen lifespan.

Fabrication of High-Performance Filter Screens

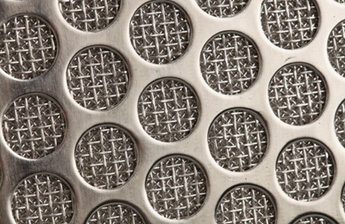

The performance of a self-cleaning filter depends heavily on the quality of its screen. Multi-layer, diffusion-bonded sintered mesh on perforated plate is the gold standard for producing durable, high-efficiency screens. This fabrication method involves:

  1. Layered Mesh Construction: Multiple layers of stainless steel are stacked to create a strong, uniform filtration surface.
  2. Diffusion Bonding: Heat and pressure are applied to fuse the mesh layers at the molecular level, eliminating weak points and creating a seamless, robust structure.
  3. Precision Aperture Control: The bonding process ensures precise and consistent pore sizes, enabling the screen to reliably block particles larger than its micron rating.

Screens produced using this method achieve over 98% efficiency in removing particles larger than their rated size, ensuring dependable protection for water systems.

The perforated plate in the construction of a multi-layer diffusion-bonded mesh screen serves as a structural support layer that enhances the overall durability and performance of the filter. Positioned as the outermost layer, the perforated plate provides mechanical strength to withstand high pressures and flow rates while maintaining the integrity of the finer mesh layers. Its perforations are carefully designed to ensure minimal obstruction to flow while evenly distributing mechanical loads across the mesh. This support helps the bonded mesh maintain its precise aperture size, preventing deformation and ensuring consistent particle filtration efficiency over time. Additionally, the perforated plate aids in the backwashing or suction cleaning process, creating a stable foundation for debris removal without compromising the screen’s performance.

Wedge Wire Screens for Fibers

Wedge wire screens are an excellent alternative for filtering fibrous particles due to their unique V-shaped profile and high structural integrity. The design prevents particle clogging by allowing fibers to slide off the screen surface, ensuring consistent flow and reducing maintenance needs. With precise slot openings, wedge wire screens can effectively capture fibrous debris while offering superior durability and resistance to wear, making them ideal for challenging filtration environments such as pulp, paper, and wastewater applications.

Particles in the 100-500U Range Can:

  • Cause Equipment Fouling: Particles can accumulate on heat exchanger surfaces, reducing efficiency and increasing energy consumption.
  • Promote Biological Growth: Organic matter in this range can serve as a nutrient source for biofilms, leading to microbial fouling.
  • Accelerate Corrosion: Sediments can create localized corrosion zones on equipment surfaces.

By effectively removing particles in this range, automatic self-cleaning water filters help maintain system efficiency, reduce maintenance costs, and extend the life of downstream equipment.

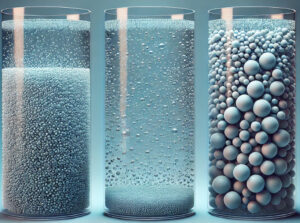

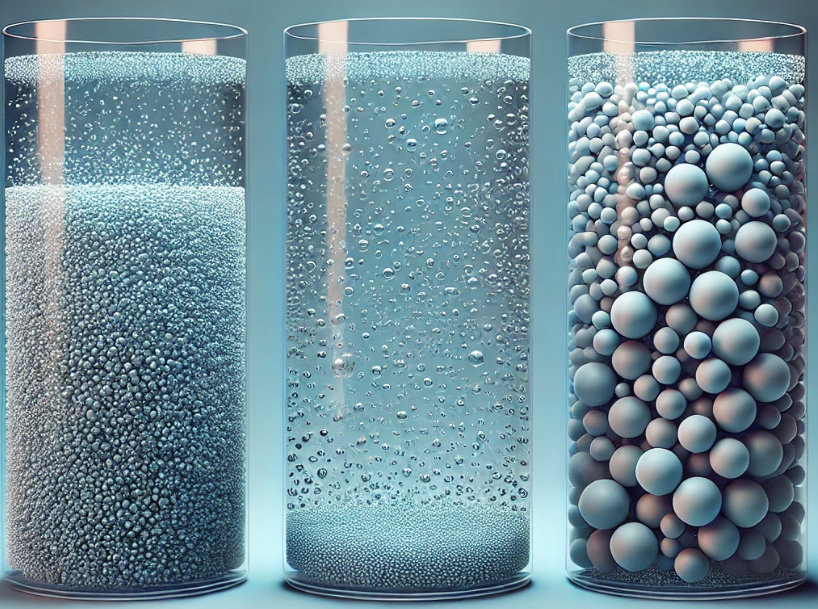

Screen Selection and TSS

Screen selection in self-cleaning water filtration systems is guided by the concentration of total suspended solids (TSS) in the water, expressed in parts per million (ppm). For example, a 100-micron stainless steel sintered mesh screen is ideal for water containing < 100 ppm TSS. This alignment ensures that the filter efficiently captures particles without becoming overloaded, maintaining optimal flow and reducing maintenance needs. The overall recommended maximum for TSS for self-cleaning screen filters is 150ppm.

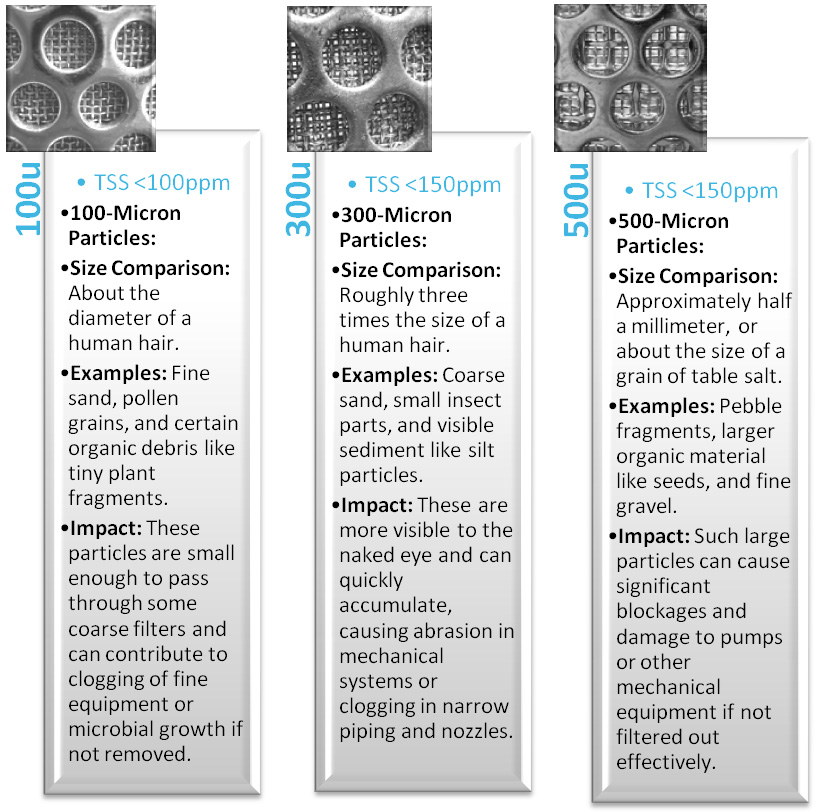

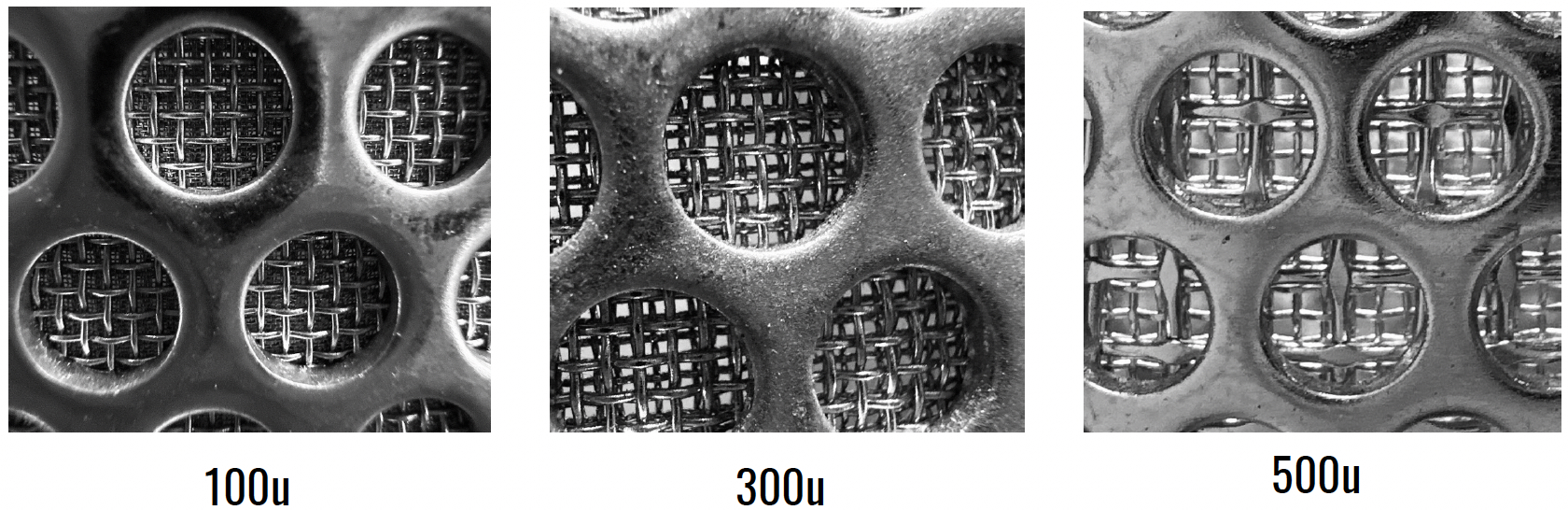

Screens & Particles in the 100-500U Range

Certified Excellence: Use in Food Beverage & Drinking Water Systems

Forsta Filters is a trusted name in automatic self-cleaning water filtration, offering solutions certified by NSF for use in drinking water systems and the food and beverage industry. These certifications ensure that Forsta products meet strict safety and hygiene standards, making them ideal for applications where water quality is paramount.

Engineered for durability and versatility, Forsta Self-Cleaning Filters can operate in high-temperature environments up to 250°F, making them suitable for challenging industrial processes, such as those in bakeries and food production facilities.

In large-scale bakery operations, clean hot water is critical for ensuring sanitary conditions throughout the production process, including mixing, dough preparation, and cleaning equipment. Hot water at precise temperatures helps dissolve fats and sugars while preventing bacterial growth, which is essential for food safety and product consistency. Reliable filtration systems are vital to maintain water purity, particularly when reusing hot water in high-demand environments, ensuring compliance with industry hygiene standards.

Real World Application: A High Volume Bakery Case Study

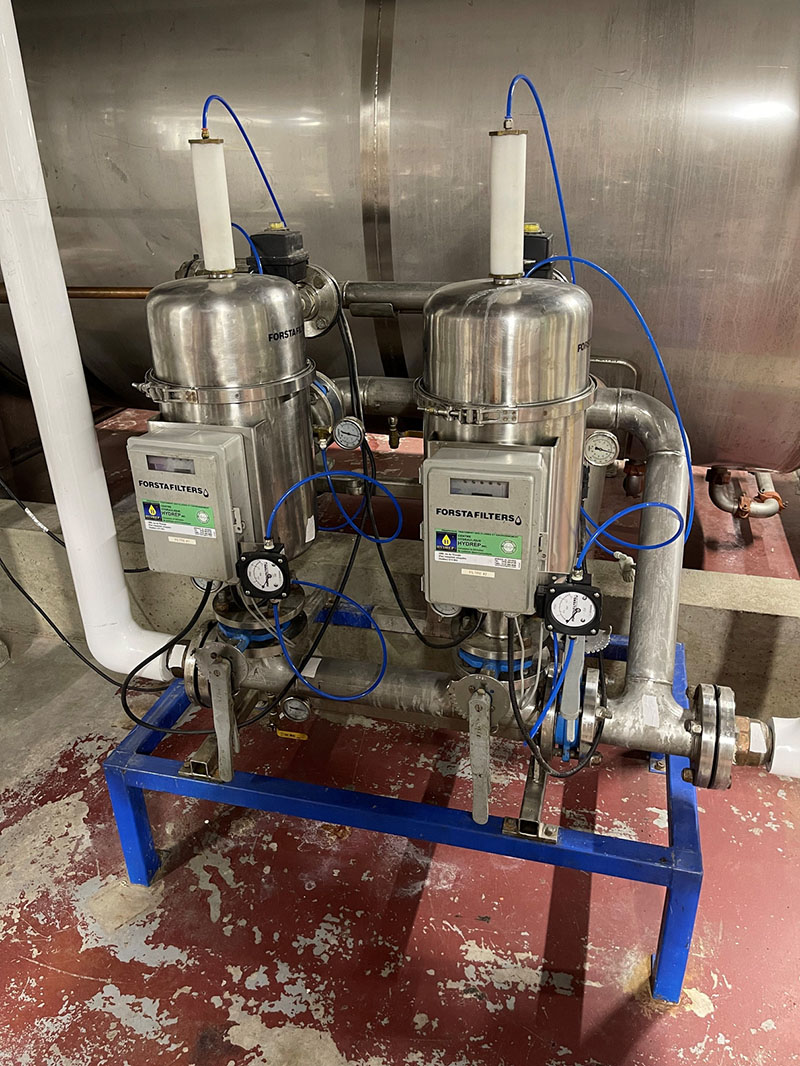

Forsta filters’ effectiveness can be seen in a high-volume bakery that produces hundreds of thousands of baked goods daily. The bakery utilizes two Forsta B-90 model filters for hot tank water filtration. These filters ensure a steady supply of high-quality sanitary water at elevated temperatures, crucial for maintaining hygiene and product quality.

The B-90 filters are equipped with 200-micron screens, optimized for removing particles like flour dust, minor organic debris, and sediment from the water supply. The self-cleaning mechanism eliminates the need for manual intervention, providing the bakery with uninterrupted operation and significant labor savings.



Switching to a system delivering 600 gallons per minute (GPM) of reliable flow from a hot water tank has dramatically improved efficiency in the bakery compared to the previous use of conventional filters. The automated filtration system eliminates the frequent downtime associated with replacing and disposing of bag filters, saving labor costs and reducing process interruptions. Additionally, the self-cleaning mechanism prevents water waste, recirculating filtered water back into the system, which significantly lowers water consumption. Energy efficiency has improved as well since maintaining a consistent flow from the hot water tank reduces the need to reheat water lost during manual filtration. Overall, the bakery has saved thousands of dollars annually in operational costs while achieving more consistent production schedules and enhanced sustainability.

Whether for a high-volume bakery or a complex cooling system, Forsta Self-Cleaning Filters exemplify how the right technology can enhance efficiency and ensure operational excellence.
