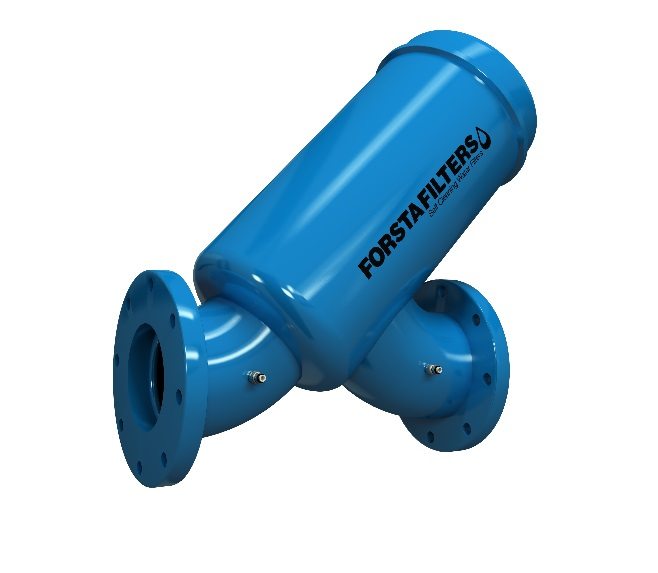

Y Shape

Coarse Strainers

Coarse filters have a straight flange design which allows for direct installation into an existing pipeline.

Coarse Strainers

at Work

All Details at a Glance

Coarse Strainers

A Coarse Strainer industrial water filter is an in-line configuration of an automatic self-cleaning water filter.

Coarse Strainer automatic filters have an inline flange design which allows for direct installation into an existing pipeline.

This first-stage automatic water filter is designed to eliminate large debris from source water. A Coarse Strainer industrial water filter is often used in combination with other Forsta filter models to provide complete equipment protection.

Specifications

US Metric
Strainer Max Flow Rate 10,000 gpm 2,271 m³/h
Operating Pressure 40 - 150 psi * 2.5 - 10 bar *
Max Temperature 150º F * 65º C *
Screen Opening 500µ - 6,000µ
Flush Valve Size Single 1", 2", 3", or 4" 25mm, 50mm, 75mm, or 100mm
Flush Duration 6 - 16 seconds
Flush Volume 4 - 347 gallons 15 - 1,310 liters
Material of Construction 304/316L Stainless or Superduplex

Filter Model Screen Area Max Flow Rate Connection Size CAD/PDF Files
  ft² cm² gpm m³/h in mm dwg step pdf
M1.5-CSC 0.4 370 100 23 1.5 38
M1-CSC 0.4 370 75 17 1 25
M2-CSC 0.4 370 150 34 2 50
ML2-CSC 1 929 200 45 2 50
ML3-CSC 1 929 300 68 3 80
ML4-CSC 1 929 300 68 4 100
A2-CSC 1 929 200 45 2 50
A3-CSC 1 929 300 68 3 80
A4-CSC 1 929 400 91 4 100
B3-CSC 2 1,858 300 68 3 80
B4-CSC 2 1,858 500 114 4 100
B5-CSC 2 1,858 500 114 8 200
C2-CSC 3 2,787 200 45 2 50
C3-CSC 3 2,787 300 68 3 80
C4-CSC 3 2,787 500 114 4 100
C6-CSC 3 2,787 900 204 6 150
C8-CSC 3 2,787 900 204 8 200
