180 Series – Horizontal Self-Cleaning Filters

180 Series – Horizontal Self-Cleaning Filters

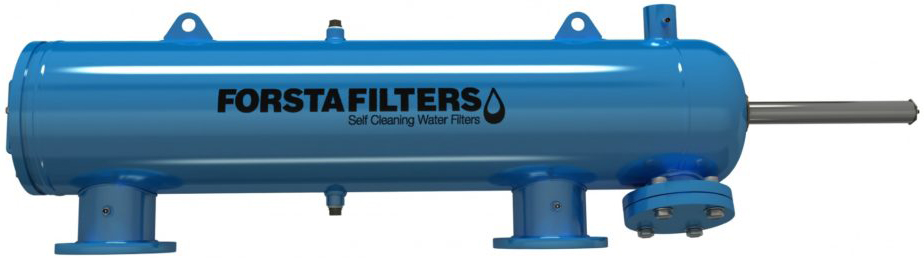

The 180 Series filters offer a unique configuration of automatic self-cleaning water filters. Commonly referred to as horizontal self-cleaning filters, 180 Series filters can be installed in any orientation.
180 Series self-cleaning water filters have a parallel flange configuration to accommodate simple installation. The 180 Series automatic water filter will integrate with any straight pipeline.

180 Series industrial water filters are distinguished by a two-stage screening process. Each water filtration system contains a coarse screen and a fine screen. The coarse screen is responsible for straining out large debris from a water source. The fine screen purifies water to its designated quality.

These automatic water filters provide solutions in a wide variety of industrial, irrigation, and municipal applications.

NSF/ANSI 61 & NSF/ANSI 372 CERTIFIED

Call us now at 310-837-7177 or fill out our quote form and we’ll be in touch with you right away to get started sizing your horizontal self-cleaning water filter.180 series self-cleaning water filter

Request a Quote

Horizontal Self-Cleaning Filter Characteristics:

  • Flow Rate: 15 – 7,350 gpm
  • Flush cycle duration: 6 – 20 seconds
  • Flush valve size: single 1″ or a single 2″
  • Screen opening: 5µ – 4000µ
  • Temperature: 210ºF
  • Flush Volume: 15 – 110 gallons per backwash
  • Working pressure: 35 – 150 psi
  • Material: Stainless Steel, Carbon Steel, or Duplex Stainless



Filter Model Screen Area (sq ft) Max Flow Rate (gpm) Connection Size (in) Data Sheet (dwg/pdf)
A2-180 2.65 200 2  DWG  PDF
A3-180 2.65 300 3  DWG  PDF
A4-180 2.65 500 4  DWG  PDF
A6-180 2.65 650 6  DWG  PDF
B4-180 5.25 500 4  DWG  PDF
B6-180 5.25 1000 6  DWG  PDF
B8-180 5.25 1400 8  DWG  PDF
C4-180 7 500 4  DWG  PDF
C6-180 7 1000 6  DWG  PDF
C8-180 7 1700 8  DWG  PDF
C10-180 7 1900 10  DWG  PDF
D4-180 9.25 500 4  DWG  PDF
D6-180 9.25 1000 6  DWG  PDF
D8-180 9.25 2000 8  DWG  PDF
D10-180 9.25 2000 10  DWG  PDF
E10-180 12.25 2700 10  DWG  PDF
E12-180 12.25 3100 12  DWG  PDF
F12-180 15.25 3800 12  DWG  PDF
F14-180 15.25 3800 14  DWG  PDF
F16-180 15.25 3800 16  DWG PDF
F18-180 15.25 3800 18  DWG  PDF
G14-180 18 4500 14  DWG  PDF
G16-180 18 4500 16  DWG  PDF
G18-180 18 4500 18  DWG  PDF
G20-180 18 4500 20  DWG  PDF
H16-180 24.5 6125 16  DWG  PDF
H18-180 24.5 6125 18  DWG  PDF
H20-180 24.5 7350 20  DWG  PDF
H24-180 24.5 7350 24  DWG  PDF
H30-180 24.5 7350 30  DWG  PDF
Request a Quote

180 SERIES SELF-CLEANING FILTERS – PARALLEL INSTALLATION

For cost-effective solutions to high flow applications, Forsta frequently offers the 180 Series filters in parallel manifolded configurations custom designed to accommodate space constraints.

Parallel_180 Series Self-Cleaning Filters
